XML Schema Documentation

Super-types:	None
Sub-types:	Cash (by extension) UnderlyingAsset (by extension) Deposit (by extension) ExchangeTraded (by extension) Bond (by extension) ConvertibleBond (by extension) EquityAsset (by extension) ExchangeTradedContract (by extension) ExchangeTradedFund (by extension) Future (by extension) Index (by extension) FxRateAsset (by extension) Loan (by extension) Mortgage (by extension) MutualFund (by extension) RateIndex (by extension) SimpleCreditDefaultSwap (by extension) SimpleFra (by extension) SimpleIRSwap (by extension)

Super-types:

None

Sub-types:

Name	Asset
Used by (from the same schema document)	Element underlyingAsset
Abstract	yes
Documentation	A generic type describing the basic components of an asset.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<instrumentId> InstrumentId </instrumentId> [1..*]

<description> xsd:string </description> [0..1]

'The long name of a security.','Vollständige Wertpapierbezeichnung.'

</...>

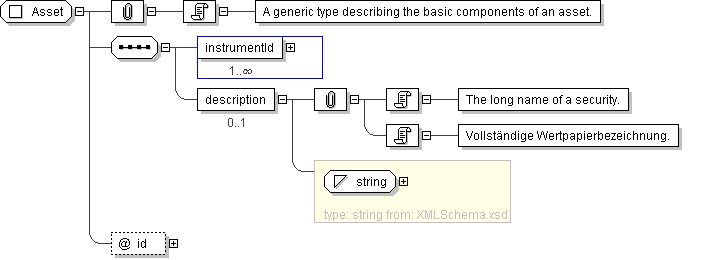

Diagram

Schema Component Representation

<xsd:complexType name="Asset" abstract="true">

<xsd:sequence>

<xsd:element name="instrumentId" type=" InstrumentId " maxOccurs="unbounded"/>

<xsd:element name="description" type=" xsd:string " minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
