XML Schema Documentation

Super-types:	None
Sub-types:	None

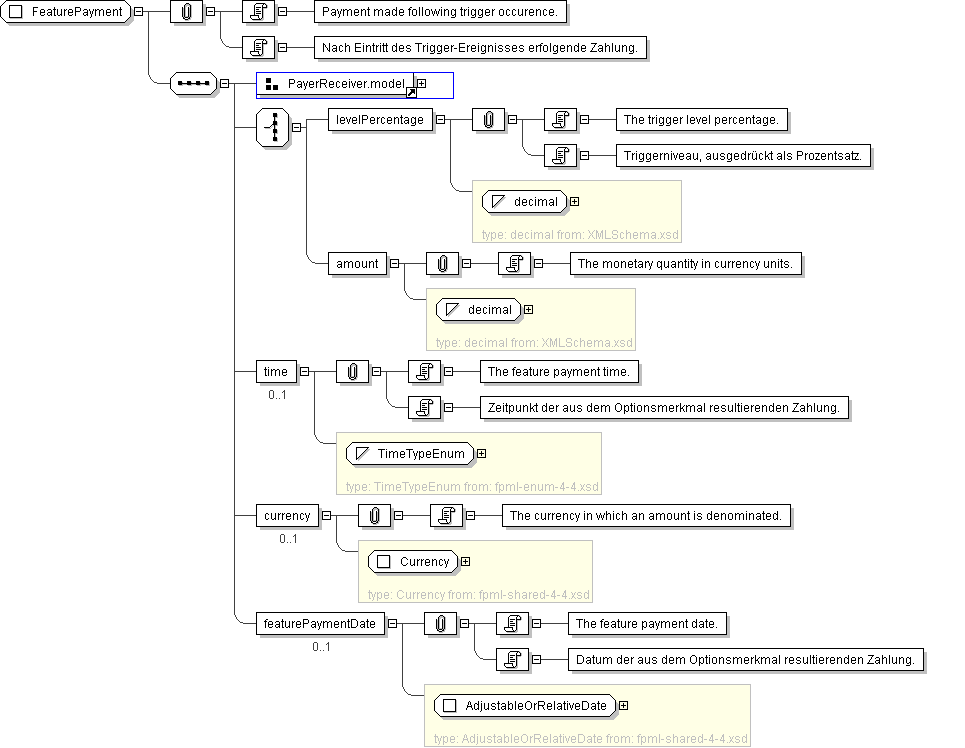

Name	FeaturePayment
Used by (from the same schema document)	Complex Type TriggerEvent
Abstract	no
Documentation	Payment made following trigger occurence. Nach Eintritt des Trigger-Ereignisses erfolgende Zahlung.

XML Instance Representation

<...>

<payerPartyReference> PartyOrAccountReference </payerPartyReference> [1]

'A reference to the party responsible for making the payments defined by this structure.'

<receiverPartyReference> PartyOrAccountReference </receiverPartyReference> [1]

'A reference to the party that receives the payments corresponding to this structure.'

Start Choice [1]

<levelPercentage> xsd:decimal </levelPercentage> [1]

'The trigger level percentage.','Triggerniveau, ausgedrückt als Prozentsatz.'

<amount> xsd:decimal </amount> [1]

'The monetary quantity in currency units.'

End Choice

<time> TimeTypeEnum </time> [0..1]

'The feature payment time.','Zeitpunkt der aus dem Optionsmerkmal resultierenden Zahlung.'

<currency> Currency </currency> [0..1]

'The currency in which an amount is denominated.'

<featurePaymentDate> AdjustableOrRelativeDate </featurePaymentDate> [0..1]

'The feature payment date.','Datum der aus dem Optionsmerkmal resultierenden Zahlung.'

</...>

Schema Component Representation

<xsd:complexType name="FeaturePayment">

<xsd:sequence>

<xsd:group ref=" PayerReceiver.model "/>

<xsd:choice>

<xsd:element name="levelPercentage" type=" xsd:decimal "/>

<xsd:element name="amount" type=" xsd:decimal "/>

</xsd:choice>

<xsd:element name="time" type=" TimeTypeEnum " minOccurs="0"/>

<xsd:element name="currency" type=" Currency " minOccurs="0"/>

<xsd:element name="featurePaymentDate" type=" AdjustableOrRelativeDate " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
