XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	OptionFeature
Used by (from the same schema document)	Complex Type OptionBaseExtended
Abstract	no
Documentation	A type for defining option features.

XML Instance Representation

<...>

<fxFeature> FxFeature </fxFeature> [0..1]

'A quanto or composite FX feature.'

<strategyFeature> StrategyFeature </strategyFeature> [0..1]

'A simple strategy feature'

<asian> Asian </asian> [0..1]

'An option where and average price is taken on valuation.'

<barrier> Barrier </barrier> [0..1]

'An option with a barrier feature.'

<knock> Knock </knock> [0..1]

'A knock feature.'

<passThrough> PassThrough </passThrough> [0..1]

'Pass through payments from the underlyer, such as dividends.'

</...>

Schema Component Representation

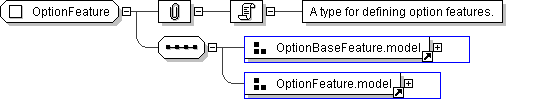

<xsd:complexType name="OptionFeature">

<xsd:sequence>

<xsd:group ref=" OptionBaseFeature.model "/>

<xsd:group ref=" OptionFeature.model "/>

</xsd:sequence>

</xsd:complexType>
