XML Schema Documentation

Super-types:	QuotableProduct < QuotableFxLeg (by extension)
Sub-types:	None

Name	QuotableFxLeg
Used by (from the same schema document)	Element quotableFxSingleLeg
Abstract	no
Documentation	A type that represents a single exchange of one currency for another that may be quoted on. The definition allows currency amounts to be absent and does not include an exchange rate.

XML Instance Representation

<...>

<productType> ProductType </productType> [0..*]

'A classification of the type of product. FpML defines a simple product categorization using a coding scheme.'

<productId> ProductId </productId> [0..*]

'A product reference identifier allocated by a party. FpML does not define the domain values associated with this element. Note that the domain values for this element are not strictly an enumerated list.'

<exchangedCurrency> QuotablePayment </exchangedCurrency> [0..1]

<exchangeRate> QuotableFxRate </exchangeRate> [1]

<nonDeliverableForward> FxCashSettlement </nonDeliverableForward> [0..1]

'Used to describe a particular type of FX forward transaction that is settled in a single currency.'

</...>

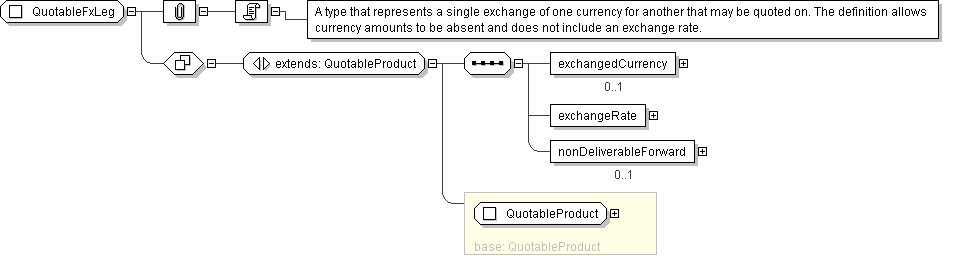

Schema Component Representation

<xsd:complexType name="QuotableFxLeg">

<xsd:complexContent>

<xsd:extension base=" QuotableProduct ">

<xsd:sequence>

<xsd:element name="exchangedCurrency" type=" QuotablePayment " minOccurs="0"/>

<xsd:element name="exchangeRate" type=" QuotableFxRate "/>

<xsd:element name="nonDeliverableForward" type=" FxCashSettlement " minOccurs="0"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
