XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	Discounting
Used by (from the same schema document)	Complex Type Calculation
Abstract	no
Documentation	A type defining discounting information. The 2000 ISDA definitions, section 8.4. discounting (related to the calculation of a discounted fixed amount or floating amount) apply. This type must only be included if discounting applies.

XML Instance Representation

<...>

<discountingType> DiscountingTypeEnum </discountingType> [1]

'The discounting method that is applicable.'

Start Group: DiscountRate.model [0..1]

<discountRate> xsd:decimal </discountRate> [1]

'A discount rate, expressed as a decimal, to be used in the calculation of a discounted amount. A discount amount of 5% would be represented as 0.05.'

<discountRateDayCountFraction> DayCountFraction </discountRateDayCountFraction> [0..1]

'A discount day count fraction to be used in the calculation of a discounted amount.'

End Group: DiscountRate.model
</...>

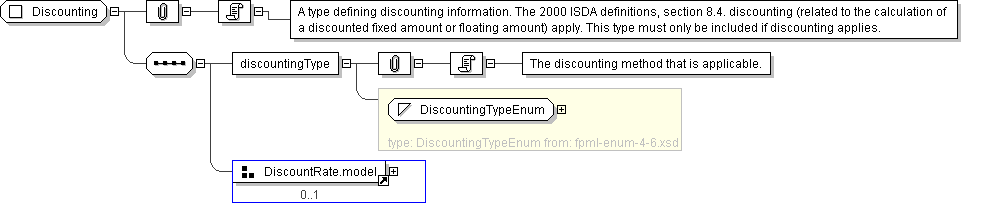

Schema Component Representation

<xsd:complexType name="Discounting">

<xsd:sequence>

<xsd:element name="discountingType" type=" DiscountingTypeEnum "/>

<xsd:group ref=" DiscountRate.model " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: Discounting
