XML Schema Documentation

Name	CommodityFixedPrice.model
Used by (from the same schema document)	Complex Type NonPeriodicFixedPriceLeg , Complex Type FixedPriceLeg
Documentation	The different options for specifying the Fixed Price.

XML Instance Representation

Start Choice [1]

<fixedPriceSchedule> CommodityFixedPriceSchedule </fixedPriceSchedule> [1]

'Allows the specification of a Fixed Price that varies over the life of the trade.'

Start Choice [1]

<fixedPrice> FixedPrice </fixedPrice> [1]

'Fixed price on which fixed payments are based.'

<worldscaleRate> xsd:decimal </worldscaleRate> [1]

'For a WET Voyager Charter Commodity Swap, the number of Worldscale Points for purposes of the calculation of a Fixed Amount.'

<contractRate> NonNegativeMoney </contractRate> [1]

'For a DRY Voyage Charter or Time Charter Commodity Swap, the price per relevant unit for pruposes of the calculation of a Fixed Amount.'

<settlementPeriodsPrice> SettlementPeriodsFixedPrice </settlementPeriodsPrice> [1..*]

'For an electricity transaction, the fixed price for a range of ranges of Settlement Periods on which fixed payments are based.'

End Choice
End Choice

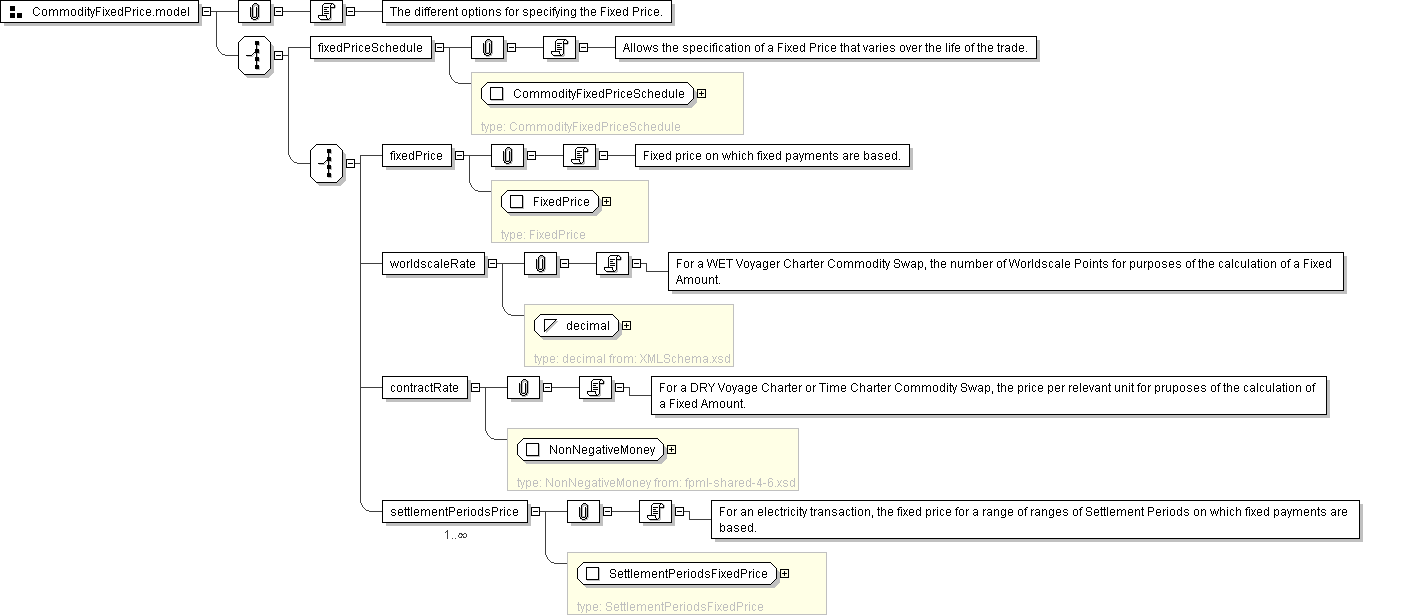

Schema Component Representation

<xsd:group name="CommodityFixedPrice.model">

<xsd:choice>

<xsd:element name="fixedPriceSchedule" type=" CommodityFixedPriceSchedule "/>

<xsd:choice>

<xsd:element name="fixedPrice" type=" FixedPrice "/>

<xsd:element name="worldscaleRate" type=" xsd:decimal "/>

<xsd:element name="contractRate" type=" NonNegativeMoney "/>

<xsd:element name="settlementPeriodsPrice" type=" SettlementPeriodsFixedPrice " maxOccurs="unbounded"/>

</xsd:choice>

</xsd:group>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
