XML Schema Documentation

Super-types:	CommodityPhysicalQuantitySchedule < ElectricityPhysicalDeliveryQuantitySchedule (by extension)
Sub-types:	None

Name	ElectricityPhysicalDeliveryQuantitySchedule
Used by (from the same schema document)	Complex Type ElectricityPhysicalQuantity
Abstract	no
Documentation	Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<quantityStep> CommodityNotionalQuantity </quantityStep> [1..*]

'The quantity per Calculation Period. There must be a quantity specified for each Calculation Period, regardless of whether the quantity changes or remains the same between periods.'

Start Choice [1]

<calculationPeriodsReference> CalculationPeriodsReference </calculationPeriodsReference> [1]

'A pointer style reference to the Calculation Periods defined on another leg.'

<calculationPeriodsScheduleReference> CalculationPeriodsScheduleReference </calculationPeriodsScheduleReference> [1]

'A pointer style reference to the Calculation Periods Schedule defined on another leg.'

End Choice

<settlementPeriodsReference> SettlementPeriodsReference </settlementPeriodsReference> [1..*]

'A pointer style reference to the range(s) of Settlement Periods to which this quantity applies.'

</...>

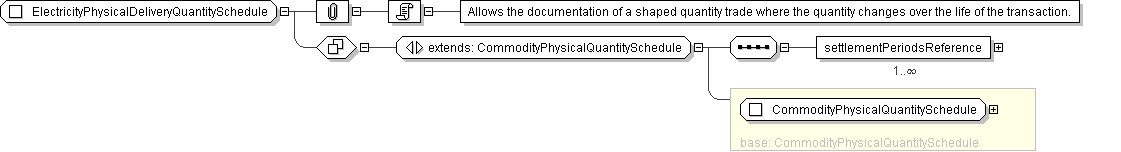

Schema Component Representation

<xsd:complexType name="ElectricityPhysicalDeliveryQuantitySchedule">

<xsd:complexContent>

<xsd:extension base=" CommodityPhysicalQuantitySchedule ">

<xsd:sequence>

<xsd:element name="settlementPeriodsReference" type=" SettlementPeriodsReference " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
