XML Schema Documentation

Super-types:	Leg < PhysicalLeg (by extension) < ElectricityPhysicalLeg (by extension)
Sub-types:	None

Name	ElectricityPhysicalLeg
Used by (from the same schema document)	Complex Type CommoditySwap
Abstract	no
Documentation	Physically settled leg of a physically settled electricity Commodity Swap.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<payerPartyReference> PartyOrAccountReference </payerPartyReference> [1]

'A reference to the party responsible for making the payments defined by this structure.'

<receiverPartyReference> PartyOrAccountReference </receiverPartyReference> [1]

'A reference to the party that receives the payments corresponding to this structure.'

<settlementPeriods> SettlementPeriods </settlementPeriods> [1..*]

'The specification of the Settlement Periods in which the electricity will be delivered. The Settlement Periods will apply from and including the Effective Date up to and including the Termination Date. If more than one settlementPeriods element is present this indicates multiple ranges of Settlement Periods apply to the entire trade - for example off-peak weekdays and all day weekends. Settlement Period ranges should not overlap.'

<settlementPeriodsSchedule> SettlementPeriodsSchedule </settlementPeriodsSchedule> [0..1]

'The specification of the Settlement Periods in which the electricity will be delivered for a \"shaped\" trade i.e. where different Settlement Period ranges will apply to different periods of the trade.'

<product> ElectricityProduct </product> [1]

'The specification of the electricity to be delivered.'

<delivery> ElectricityDelivery </delivery> [0..1]

'The physical delivery conditions for the transaction.'

<deliveryQuantity> ElectricityPhysicalQuantity </deliveryQuantity> [1]

'The different options for specifying the quantity.'

</...>

Schema Component Representation

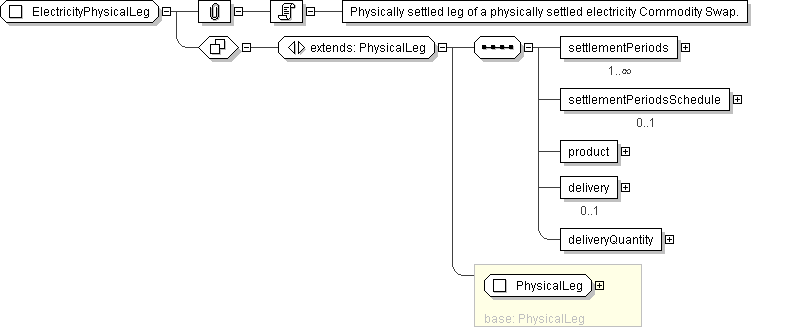

<xsd:complexType name="ElectricityPhysicalLeg">

<xsd:complexContent>

<xsd:extension base=" PhysicalLeg ">

<xsd:sequence>

<xsd:element name="settlementPeriods" type=" SettlementPeriods " maxOccurs="unbounded"/>

<xsd:element name="settlementPeriodsSchedule" type=" SettlementPeriodsSchedule " minOccurs="0"/>

<xsd:element name="product" type=" ElectricityProduct "/>

<xsd:element name="delivery" type=" ElectricityDelivery " minOccurs="0"/>

<xsd:element name="deliveryQuantity" type=" ElectricityPhysicalQuantity "/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
