XML Schema Documentation

Super-types:	Leg < PhysicalLeg (by extension) < OilPhysicalLeg (by extension)
Sub-types:	None

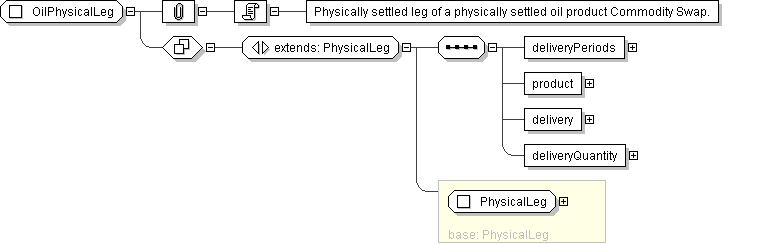

Name	OilPhysicalLeg
Used by (from the same schema document)	Complex Type CommoditySwap
Abstract	no
Documentation	Physically settled leg of a physically settled oil product Commodity Swap.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<payerPartyReference> PartyOrAccountReference </payerPartyReference> [1]

'A reference to the party responsible for making the payments defined by this structure.'

<receiverPartyReference> PartyOrAccountReference </receiverPartyReference> [1]

'A reference to the party that receives the payments corresponding to this structure.'

<deliveryPeriods> CommodityDeliveryPeriods </deliveryPeriods> [1]

'The different options for specifying the Delivery or Supply Periods.'

<product> OilProduct </product> [1]

'The specification of the oil product to be delivered.'

<delivery> OilDelivery </delivery> [1]

'The physical delivery conditions for the transaction.'

<deliveryQuantity> CommodityPhysicalQuantity </deliveryQuantity> [1]

'The different options for specifying the quantity.'

</...>

Schema Component Representation

<xsd:complexType name="OilPhysicalLeg">

<xsd:complexContent>

<xsd:extension base=" PhysicalLeg ">

<xsd:sequence>

<xsd:element name="deliveryPeriods" type=" CommodityDeliveryPeriods "/>

<xsd:element name="product" type=" OilProduct "/>

<xsd:element name="delivery" type=" OilDelivery "/>

<xsd:element name="deliveryQuantity" type=" CommodityPhysicalQuantity "/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
