XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ElectricityDeliveryUnitFirm
Used by (from the same schema document)	Complex Type ElectricityDelivery
Abstract	no
Documentation	The physical delivery obligation options specific to a unit firm transaction.

XML Instance Representation

<...>

<applicable> xsd:boolean </applicable> [1]

'Indicates that the trade is for a Unit Firm product. Should always be set to \"true\".'

<generationAsset> CommodityDeliveryPoint </generationAsset> [0..1]

</...>

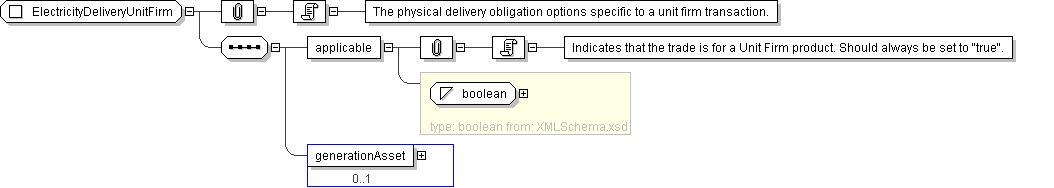

Diagram

Schema Component Representation

<xsd:complexType name="ElectricityDeliveryUnitFirm">

<xsd:sequence>

<xsd:element name="applicable" type=" xsd:boolean "/>

<xsd:element name="generationAsset" type=" CommodityDeliveryPoint " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
