XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ContractAmendment
Used by (from the same schema document)	Complex Type ContractAmended , Complex Type ContractAmendedCancelled
Abstract	no
Documentation	Details of the amendment.

XML Instance Representation

<...>

<contract> Contract </contract> [1]

'A fulll description of the amended contract.'

<agreementDate> xsd:date </agreementDate> [1]

'The date on which the change was agreed.'

<effectiveDate> xsd:date </effectiveDate> [1]

'The date on which the change become effective'

<payment> Payment </payment> [0..1]

'Describes a payment made in settlement of the change.'

</...>

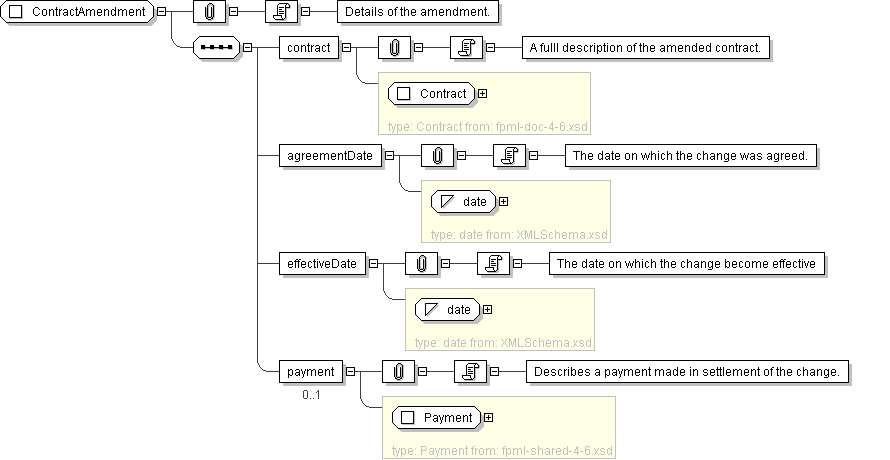

Diagram

Schema Component Representation

<xsd:complexType name="ContractAmendment">

<xsd:sequence>

<xsd:element name="contract" type=" Contract "/>

<xsd:element name="agreementDate" type=" xsd:date "/>

<xsd:element name="effectiveDate" type=" xsd:date "/>

<xsd:element name="payment" type=" Payment " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
