XML Schema Documentation

Super-types:	PaymentBase < FixedPaymentAmount (by extension)
Sub-types:	None

Name	FixedPaymentAmount
Used by (from the same schema document)	Complex Type FixedPaymentLeg
Abstract	no
Documentation	Fixed payment amount within a Dividend Swap.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<paymentAmount> Money </paymentAmount> [0..1]

'Payment amount, which is optional since the payment amount may be calculated using fixed strike and number of open units.'

<paymentDate> RelativeDateOffset </paymentDate> [1]

'Payment date relative to another date.'

</...>

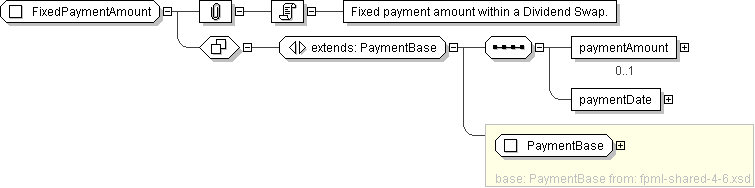

Diagram

Schema Component Representation

<xsd:complexType name="FixedPaymentAmount">

<xsd:complexContent>

<xsd:extension base=" PaymentBase ">

<xsd:sequence>

<xsd:element name="paymentAmount" type=" Money " minOccurs="0"/>

<xsd:element name="paymentDate" type=" RelativeDateOffset "/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
