XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	SideRates
Used by (from the same schema document)	Complex Type ExchangeRate
Abstract	no
Documentation	A type that is used for including rates against base currency for non-base currency FX contracts.

XML Instance Representation

<...>

<baseCurrency> Currency </baseCurrency> [1]

'The currency that is used as the basis for the side rates when calculating a cross rate.'

<currency1SideRate> SideRate </currency1SideRate> [0..1]

'The exchange rate for the first currency of the trade against base currency.'

<currency2SideRate> SideRate </currency2SideRate> [0..1]

'The exchange rate for the second currency of the trade against base currency.'

</...>

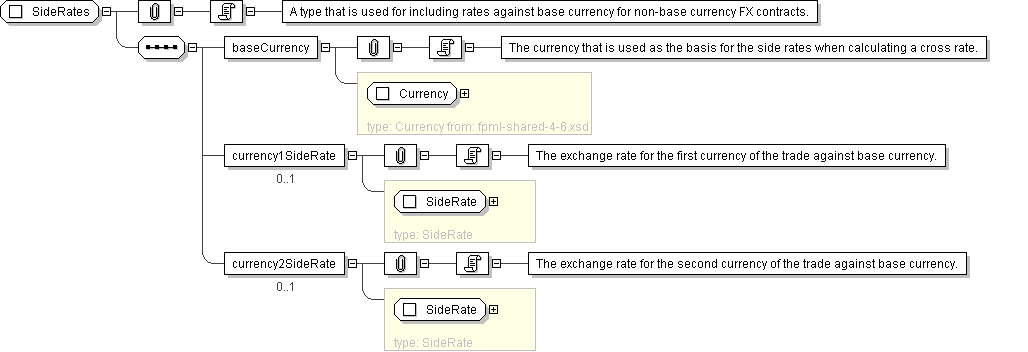

Diagram

Schema Component Representation

<xsd:complexType name="SideRates">

<xsd:sequence>

<xsd:element name="baseCurrency" type=" Currency "/>

<xsd:element name="currency1SideRate" type=" SideRate " minOccurs="0"/>

<xsd:element name="currency2SideRate" type=" SideRate " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
