XML Schema Documentation

Super-types:	IdentifiedAsset < FacilitySummary (by extension)
Sub-types:	None

Name	FacilitySummary
Used by (from the same schema document)	Model Group FacilityNoticeDetails.model
Abstract	no
Documentation	A reference to a single credit limit within a deal (also referred to in the secondary markets as a 'tranche'). The list of ids should include the value of the id and a system reference to denote which internal/external source created the id.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<instrumentId> InstrumentId </instrumentId> [1..*]

'Identification of the underlying asset, using public and/or private identifiers.'

<description> xsd:string </description> [0..1]

'Long name of the underlying asset.'

Start Choice [0..1]

<currency> Currency </currency> [1]

'Facility denomination currency.'

<originalCommitmentAmount> Money </originalCommitmentAmount> [1]

'Original global commitment amount of the facility.'

End Choice
</...>

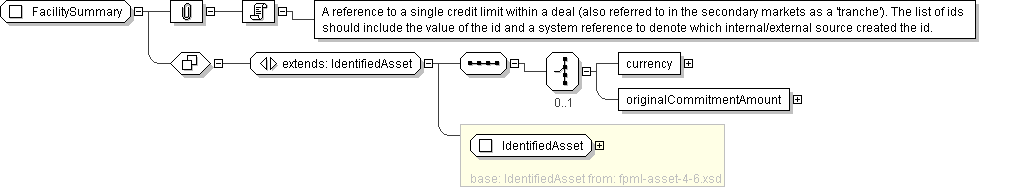

Diagram

Schema Component Representation

<xsd:complexType name="FacilitySummary">

<xsd:complexContent>

<xsd:extension base=" IdentifiedAsset ">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:element name="currency" type=" Currency "/>

<xsd:element name="originalCommitmentAmount" type=" Money "/>

</xsd:choice>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
