XML Schema Documentation

Super-types:	Reference < CalculationPeriodsReference (by extension)
Sub-types:	None

Name	CalculationPeriodsReference
Used by (from the same schema document)	Model Group CommodityDeliveryPeriodsPointer.model , Model Group CommodityCalculationPeriodsPointer.model
Abstract	no
Documentation	A pointer style reference to a calculation periods schedule defined elsewhere - note that this schedule consists of a series of actual dates in a calculationPeriods container.

XML Instance Representation

<...
href=" xsd:IDREF [1]"/>

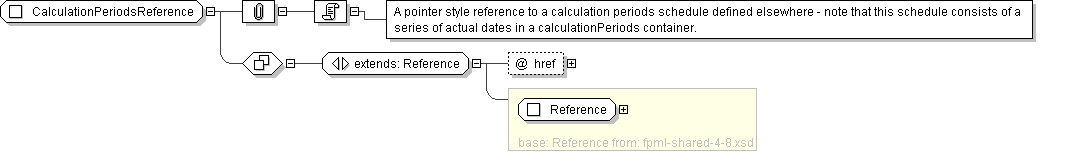

Diagram

Schema Component Representation

<xsd:complexType name="CalculationPeriodsReference">

<xsd:complexContent>

<xsd:extension base=" Reference ">

<xsd:attribute name="href" type=" xsd:IDREF " use="required" reference="AdjustableDates"/>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
