XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	CommodityRelativeExpirationDates
Used by (from the same schema document)	Complex Type CommodityPhysicalAmericanExercise , Complex Type CommodityPhysicalAmericanExercise , Complex Type CommodityPhysicalEuropeanExercise
Abstract	no
Documentation	The Expiration Dates of the trade relative to the Calculation Periods.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<expireRelativeToEvent> CommodityExpireRelativeToEvent </expireRelativeToEvent> [1]

'Specifies whether the payment(s) occur relative to the date of a physical event.'

<expirationDateOffset> DateOffset </expirationDateOffset> [1]

'Specifies any offset from the adjusted Calculation Period start date or adjusted Calculation Period end date applicable to each Payment Date.'

Start Group: BusinessCentersOrReference.model [0..1]
Start Choice [1]

<businessCentersReference> BusinessCentersReference </businessCentersReference> [1]

'A pointer style reference to a set of financial business centers defined elsewhere in the document. This set of business centers is used to determine whether a particular day is a business day or not.'

<businessCenters> BusinessCenters </businessCenters> [1]

End Choice
End Group: BusinessCentersOrReference.model
</...>

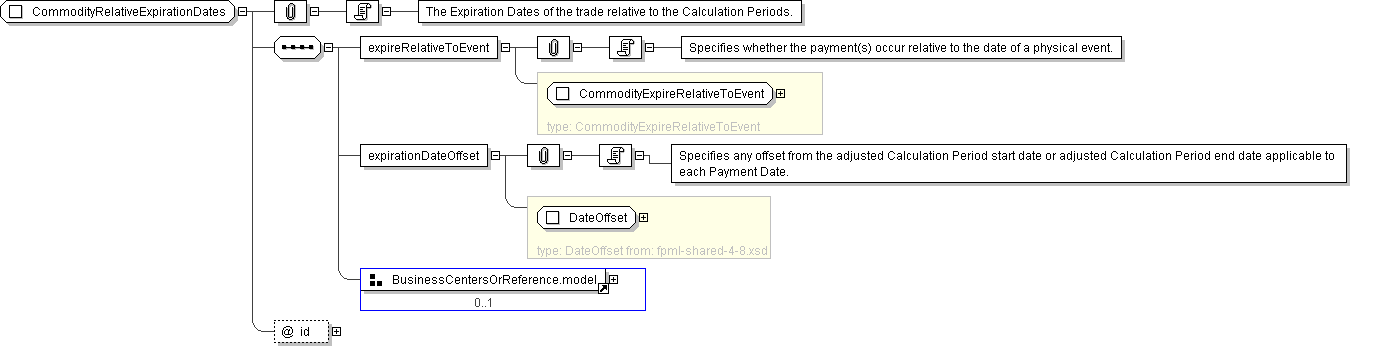

Schema Component Representation

<xsd:complexType name="CommodityRelativeExpirationDates">

<xsd:sequence>

<xsd:element name="expireRelativeToEvent" type=" CommodityExpireRelativeToEvent "/>

<xsd:element name="expirationDateOffset" type=" DateOffset "/>

<xsd:group ref=" BusinessCentersOrReference.model " minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
