XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	GasDelivery
Used by (from the same schema document)	Complex Type GasPhysicalLeg
Abstract	no
Documentation	The specification of the gas to be delivered.

XML Instance Representation

<...>
Start Choice [1]

<deliveryPoint> GasDeliveryPoint </deliveryPoint> [1]

'The physical or virtual point at which the commodity will be delivered.'

<entryPoint> CommodityDeliveryPoint </entryPoint> [1]

'The physical or virtual point at which the commodity enters a transportation system.'

<withdrawalPoint> CommodityDeliveryPoint </withdrawalPoint> [1]

'The physical or virtual point at which the commodity is withdrawn from a transportation system.'

End Choice

<deliveryType> DeliveryTypeEnum </deliveryType> [1]

'Indicates whether the buyer and seller are contractually obliged to consume and supply the specified quantities of the commodity.'

Start Sequence [0..1]

<buyerHub> CommodityHub </buyerHub> [1]

'The hub code of the gas buyer.'

<sellerHub> CommodityHub </sellerHub> [1]

'The hub code of the has seller.'

End Sequence
</...>

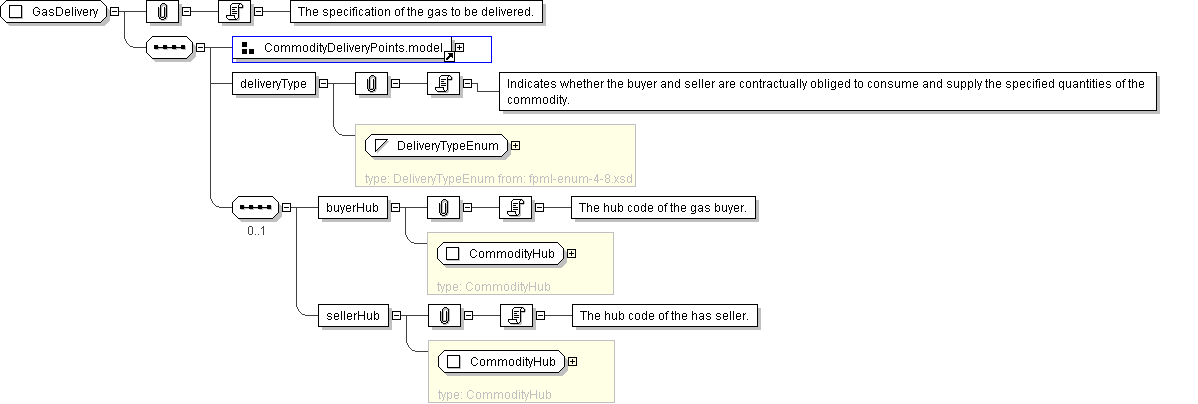

Schema Component Representation

<xsd:complexType name="GasDelivery">

<xsd:sequence>

<xsd:group ref=" CommodityDeliveryPoints.model "/>

<xsd:element name="deliveryType" type=" DeliveryTypeEnum "/>

<xsd:sequence minOccurs="0">

<xsd:element name="buyerHub" type=" CommodityHub "/>

<xsd:element name="sellerHub" type=" CommodityHub "/>

</xsd:sequence>

</xsd:complexType>
