XML Schema Documentation

Super-types:	Reference < PhysicalDeliveryDatesReference (by extension)
Sub-types:	None

Name	PhysicalDeliveryDatesReference
Abstract	no
Documentation	A pointer style reference to single-day-duration physical delivery dates defined elsewhere - note that this schedule consists of a parameterised schedule in a calculationPeriodsSchedule container.

XML Instance Representation

<...
href=" xsd:IDREF [1]"/>

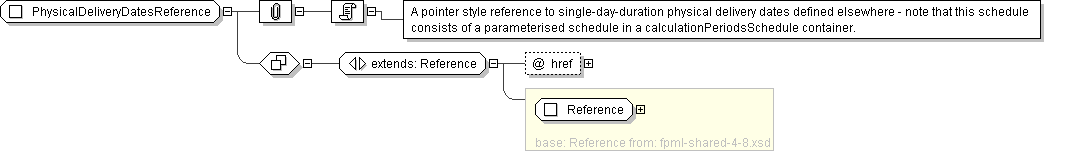

Diagram

Schema Component Representation

<xsd:complexType name="PhysicalDeliveryDatesReference">

<xsd:complexContent>

<xsd:extension base=" Reference ">

<xsd:attribute name="href" type=" xsd:IDREF " use="required" reference="CommodityCalculationPeriodsSchedule"/>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
