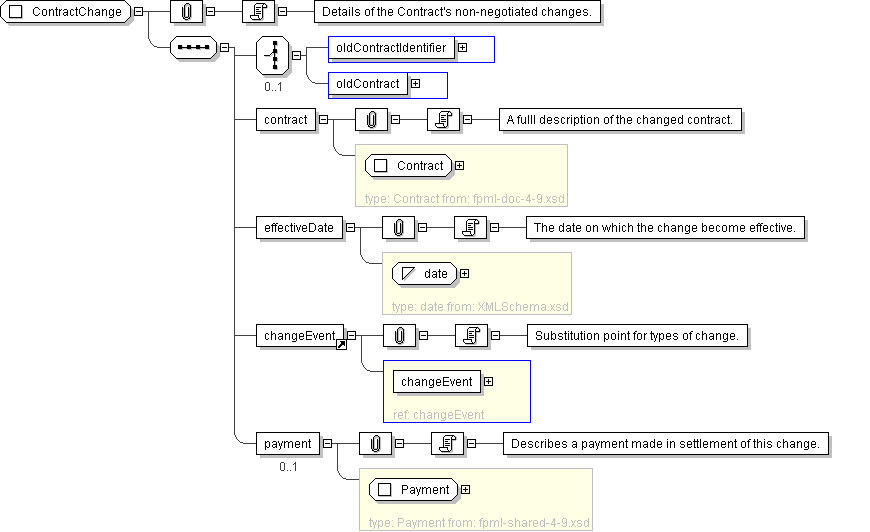

XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	ContractChange
Used by (from the same schema document)	Complex Type ContractChanged , Complex Type ContractChangedCancelled
Abstract	no
Documentation	Details of the Contract's non-negotiated changes.

XML Instance Representation

<...>
Start Choice [0..1]

<oldContractIdentifier> PartyTradeIdentifier </oldContractIdentifier> [1]

<oldContract> Contract </oldContract> [1]

End Choice

<contract> Contract </contract> [1]

'A fulll description of the changed contract.'

<effectiveDate> xsd:date </effectiveDate> [1]

'The date on which the change become effective.'

<changeEvent> ... </changeEvent> [1]

'Substitution point for types of change.'

<payment> Payment </payment> [0..1]

'Describes a payment made in settlement of this change.'

</...>

Schema Component Representation

<xsd:complexType name="ContractChange">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:element name="oldContractIdentifier" type=" PartyTradeIdentifier "/>

<xsd:element name="oldContract" type=" Contract "/>

</xsd:choice>

<xsd:element name="contract" type=" Contract "/>

<xsd:element name="effectiveDate" type=" xsd:date "/>

<xsd:element ref=" changeEvent "/>

<xsd:element name="payment" type=" Payment " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
