XML Schema Documentation

Super-types:	Asset < Cash (by extension)
Sub-types:	None

Name	Cash
Used by (from the same schema document)	Element cash
Abstract	no

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<instrumentId> InstrumentId </instrumentId> [0..*]

'Identification of the underlying asset, using public and/or private identifiers.'

<description> xsd:string </description> [0..1]

'Long name of the underlying asset.'

<currency> Currency </currency> [1]

'The currency in which an amount is denominated.'

</...>

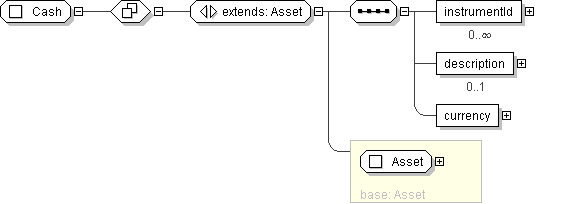

Diagram

Schema Component Representation

<xsd:complexType name="Cash">

<xsd:complexContent>

<xsd:extension base=" Asset ">

<xsd:sequence>

<xsd:element name="instrumentId" type=" InstrumentId " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="description" type=" xsd:string " minOccurs="0"/>

<xsd:element name="currency" type=" Currency "/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
