XML Schema Documentation

Super-types:	PaymentBase < PaymentDetail (by extension)
Sub-types:	None

Name	PaymentDetail
Used by (from the same schema document)	Complex Type IndependentAmount
Abstract	no

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<paymentDate> AdjustableOrRelativeDate </paymentDate> [0..1]

'Payment date.'

Start Choice [1]

<paymentAmount> Money </paymentAmount> [1]

'A fixed payment amount.'

<paymentRule> PaymentRule </paymentRule> [1]

'A type defining the calculation rule.'

<paymentAmount> Money </paymentAmount> [0..1]

'A fixed payment amount.'

End Choice
</...>

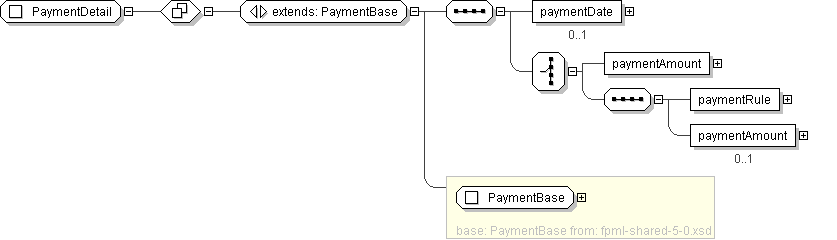

Diagram

Schema Component Representation

<xsd:complexType name="PaymentDetail">

<xsd:complexContent>

<xsd:extension base=" PaymentBase ">

<xsd:sequence>

<xsd:element name="paymentDate" type=" AdjustableOrRelativeDate " minOccurs="0"/>

<xsd:choice>

<xsd:element name="paymentAmount" type=" Money "/>

<xsd:sequence>

<xsd:element name="paymentRule" type=" PaymentRule "/>

<xsd:element name="paymentAmount" type=" Money " minOccurs="0"/>

</xsd:sequence>

</xsd:choice>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
