XML Schema Documentation

Super-types:	None
Sub-types:	PartyTradeIdentifier (by extension)

Name	TradeIdentifier
Used by (from the same schema document)	Complex Type Allocation , Complex Type BestFitTrade , Complex Type PartyTradeIdentifier , Complex Type PartyTradeIdentifier
Abstract	no
Documentation	A type defining a trade identifier issued by the indicated party.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<partyReference> PartyReference </partyReference> [1]

'Reference to a party.'

<accountReference> AccountReference </accountReference> [0..1]

'Reference to an account.'

Start Choice [1..*]

<tradeId> TradeId </tradeId> [1]

<versionedTradeId> VersionedTradeId </versionedTradeId> [1]

End Choice
</...>

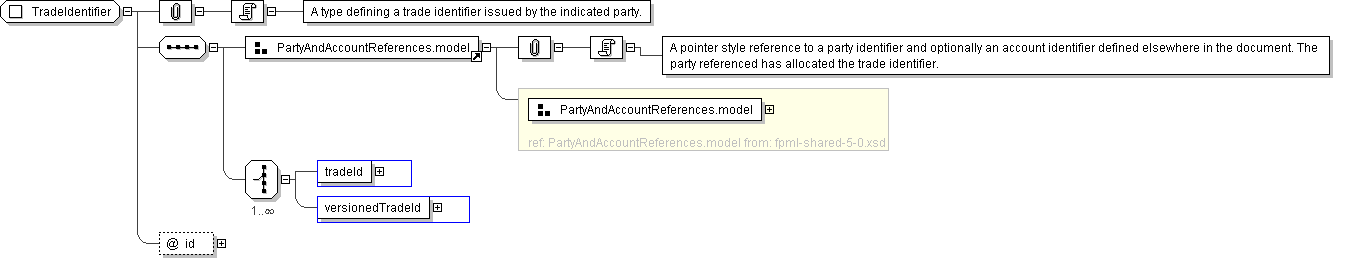

Diagram

Schema Component Representation

<xsd:complexType name="TradeIdentifier">

<xsd:sequence>

<xsd:group ref=" PartyAndAccountReferences.model "/>

<xsd:choice maxOccurs="unbounded">

<xsd:element name="tradeId" type=" TradeId "/>

<xsd:element name="versionedTradeId" type=" VersionedTradeId "/>

</xsd:choice>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
