XML Schema Documentation

Complex Type: RequestMessageHeader

[Table of contents]

Super-types: MessageHeader < RequestMessageHeader (by extension)
Sub-types: None
Name RequestMessageHeader
Used by (from the same schema document) Complex Type RequestMessage
Abstract no
Documentation A type refining the generic message header content to make it specific to request messages.
XML Instance Representation
<...>
<messageId> MessageId </messageId> [1]

'A unique identifier (within its coding scheme) assigned to the message by its creating party.'

<sentBy> MessageAddress </sentBy> [1]

'The unique identifier (within its coding scheme) for the originator of a message instance.'

<sendTo> MessageAddress </sendTo> [0..*]

'A unique identifier (within its coding scheme) indicating an intended recipent of a message.'

<copyTo> MessageAddress </copyTo> [0..*]

'A unique identifier (within the specified coding scheme) giving the details of some party to whom a copy of this message will be sent for reference.'

<creationTimestamp> xsd:dateTime </creationTimestamp> [1]

'The date and time (on the source system) when this message instance was created.'

<expiryTimestamp> xsd:dateTime </expiryTimestamp> [0..1]

'The date and time (on the source system) when this message instance will be considered expired.'

<partyMessageInformation> PartyMessageInformation </partyMessageInformation> [0..*]

'Additional message information that may be provided by each involved party.'

<dsig:Signature> ... </dsig:Signature> [0..*]
</...>

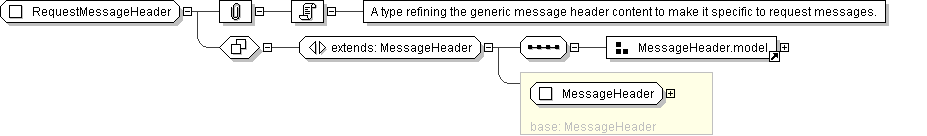

Diagram
Schema Component Representation
<xsd:complexType name="RequestMessageHeader">
<xsd:complexContent>
<xsd:extension base=" MessageHeader ">
<xsd:sequence>
<xsd:group ref=" MessageHeader.model "/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
