XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	AveragingSchedule
Used by (from the same schema document)	Complex Type AveragingPeriod , Complex Type TriggerEvent
Abstract	no
Documentation	Method of generating a series of dates.

XML Instance Representation

<...>

<startDate> xsd:date </startDate> [1]

'Date on which this period begins.'

<endDate> xsd:date </endDate> [1]

'Date on which this period ends.'

<averagingPeriodFrequency> CalculationPeriodFrequency </averagingPeriodFrequency> [1]

'The frequency at which averaging period occurs with the regular part of the valuation schedule and their roll date convention.'

</...>

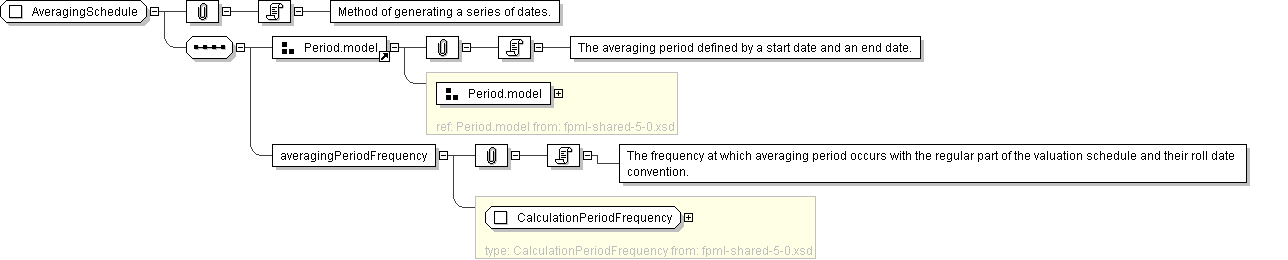

Diagram

Schema Component Representation

<xsd:complexType name="AveragingSchedule">

<xsd:sequence>

<xsd:group ref=" Period.model "/>

<--frequency, frequencyType, weekNumber, day of the week were removed as their usage is covered in the CalculationPeriodFrequency -->

<xsd:element name="averagingPeriodFrequency" type=" CalculationPeriodFrequency "/>

</xsd:sequence>

</xsd:complexType>
