XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	GenericAgreement
Used by (from the same schema document)	Complex Type PartyRelationshipDocumentation
Abstract	no
Documentation	An entity for defining a generic agreement executed between two parties for any purpose.

XML Instance Representation

<...>

<type> AgreementType </type> [1]

'The type of agreement executed between the parties.'

<version> AgreementVersion </version> [0..1]

'The version of the agreement.'

<date> xsd:date </date> [0..1]

'The date on which the agreement was signed.'

<amendmentDate> xsd:date </amendmentDate> [0..*]

'A date on which the agreement was amended.'

<governingLaw> GoverningLaw </governingLaw> [0..1]

'Identification of the law governing the agreement.'

</...>

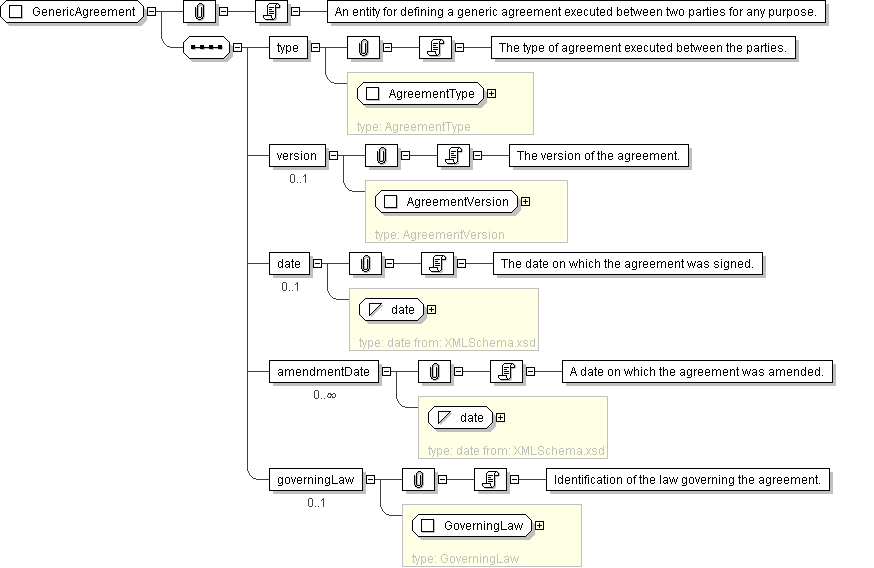

Diagram

Schema Component Representation

<xsd:complexType name="GenericAgreement">

<xsd:sequence>

<xsd:element name="type" type=" AgreementType "/>

<xsd:element name="version" type=" AgreementVersion " minOccurs="0"/>

<xsd:element name="date" type=" xsd:date " minOccurs="0"/>

<xsd:element name="amendmentDate" type=" xsd:date " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="governingLaw" type=" GoverningLaw " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
