XML Schema Documentation

Name	TradeCashflowsDefinition.model
Used by (from the same schema document)	Complex Type TradeCashflowsAsserted , Model Group DefinitionAndCashflows.model

XML Instance Representation

<asOfDate> xsd:dateTime </asOfDate> [0..1]

'The date and time at which the set of cashflows was defined.'

<reportContents> ReportContents </reportContents> [0..1]

'The specific characteristics included in the report.'

<tradeCashflowsId> TradeCashflowsId </tradeCashflowsId> [0..1]

'Unique identifier assigned by the party asserting the set of cashflows to be reconciled.'

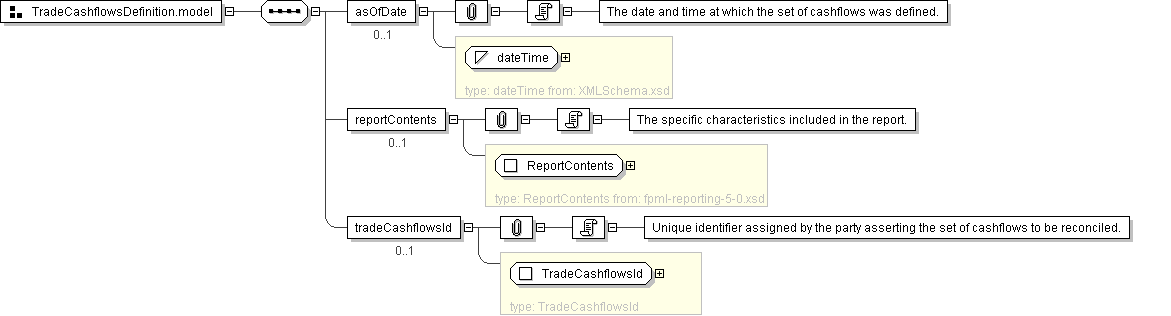

Diagram

Schema Component Representation

<xsd:group name="TradeCashflowsDefinition.model">

<xsd:sequence>

<xsd:element name="asOfDate" type=" xsd:dateTime " minOccurs="0"/>

<xsd:element name="reportContents" type=" ReportContents " minOccurs="0"/>

<xsd:element name="tradeCashflowsId" type=" TradeCashflowsId " minOccurs="0"/>

</xsd:sequence>

</xsd:group>
