element <oldTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 13 elements
Defined:
locally within OldTrade.model group in fpml-business-events-5-10.xsd; see XML source

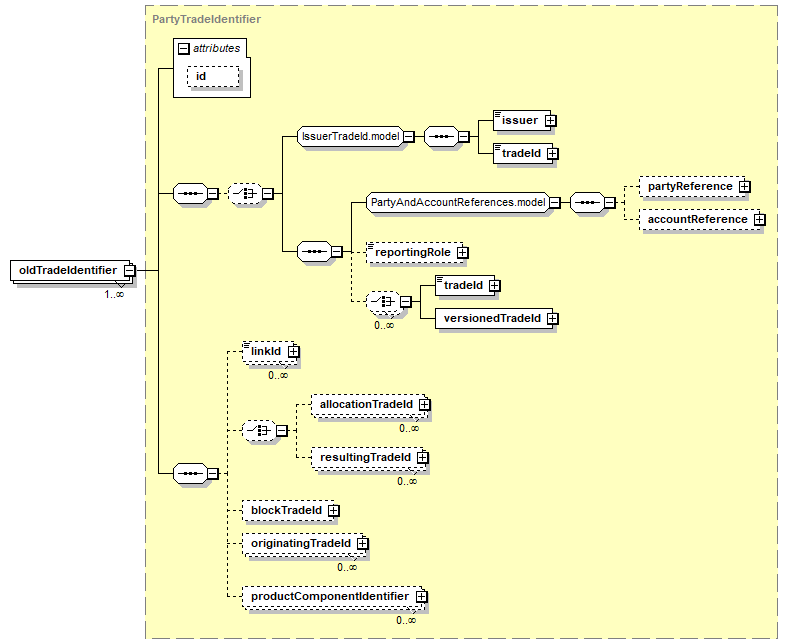

Content Model Diagram
XML Representation Summary
<oldTradeIdentifier

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference?, accountReference?, reportingRole?, (tradeId | versionedTradeId)*))?, linkId*, (allocationTradeId* | resultingTradeId*)?, blockTradeId?, originatingTradeId*, productComponentIdentifier*
</oldTradeIdentifier>
Content model elements (13):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer (defined in IssuerTradeId.model group),
linkId,
originatingTradeId,
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
reportingRole (defined in TradeIdentifier complexType),
resultingTradeId,
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (2):
novation (defined in Events.model group),
Annotation
Indicates a reference to the original trade between the transferor and the remaining party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="oldTradeIdentifier" type="PartyTradeIdentifier"/>
XML schema documentation generated with DocFlex/XML 1.10b5 using DocFlex/XML XSDDoc 2.8.1 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
