element <floatingRateMultiplierSchedule> (local)

Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	Schedule
Content:	complex, 1 attribute, 2 elements
Defined:	locally within StubFloatingRate complexType in fpml-shared-5-10.xsd; see XML source

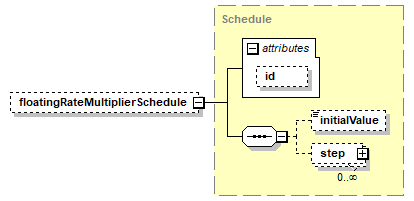

Content Model Diagram

XML Representation Summary

<floatingRateMultiplierSchedule

xsd:ID

Content:

initialValue?, step*

</floatingRateMultiplierSchedule>

Content model elements (2):

initialValue (defined in Schedule complexType),

step (defined in Schedule complexType)

Included in content model of elements (1):

floatingRate (defined in StubValue complexType)

Annotation

A rate multiplier or multiplier schedule to apply to the floating rate. A multiplier schedule is expressed as explicit multipliers and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in the calculationPeriodDatesAdjustments. The multiplier can be a positive or negative decimal. This element should only be included if the multiplier is not equal to 1 (one) for the term of the stream.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="floatingRateMultiplierSchedule" type="Schedule"/>
