element <relatedExchangeId> (local)
Namespace:
Type:
Content:
simple, 1 attribute
Defined:

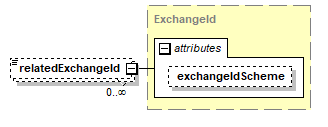

Content Model Diagram
XML Representation Summary
<relatedExchangeId

 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC"

>

Content:
{ xsd:normalizedString }
</relatedExchangeId>
Simple Content Detail:
MaxLength:
255
MinLength:
1

Included in content model of elements (14):
equity,
exchangeTradedContractNearest (in rateOfReturn),
exchangeTradedContractNearest (in variance),
exchangeTradedFund,
extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),
extraordinaryEvents (defined in NettedSwapBase complexType),
extraordinaryEvents (in equityOptionTransactionSupplement),
extraordinaryEvents (in equitySwapTransactionSupplement),
extraordinaryEvents (in returnSwap),
future,
index,
option,
underlyingEquity,
warrant
Annotation
A short form unique identifier for a related exchange. If the element is not present then the exchange shall be the primary exchange on which listed futures and options on the underlying are listed. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedExchangeId" type="ExchangeId"/>
