element <allocationId> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanAllocationIdentifier
Content:
complex, 1 attribute, 9 elements
Defined:
locally within LoanTradeAllocationDetails.model group in fpml-loan-5-11.xsd; see XML source

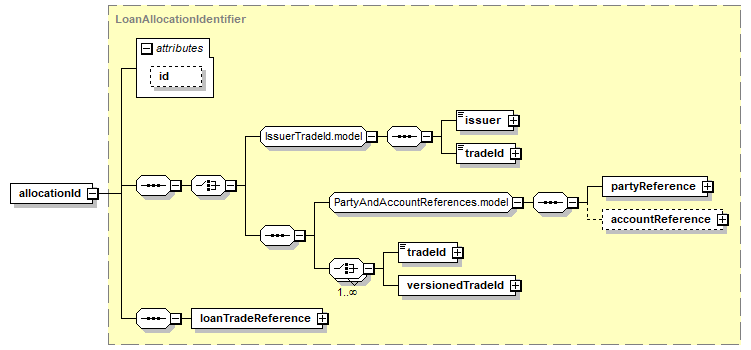

Content Model Diagram
XML Representation Summary
<allocationId

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), loanTradeReference
</allocationId>
Content model elements (9):
accountReference (defined in PartyAndAccountReferences.model group),
issuer (defined in IssuerTradeId.model group),
loanTradeReference (defined in LoanAllocationIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId (defined in TradeIdentifier complexType),
versionedTradeId (defined in TradeIdentifier complexType)
Included in content model of elements (1):
loanAllocationNotification
Annotation
A party-specific allocation identifier.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="allocationId" type="LoanAllocationIdentifier"/>
