element <tradeSummary> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanTradeSummary
Content:
complex, 1 attribute, 11 elements
Defined:
locally within LoanTradeDetails.model group in fpml-loan-5-11.xsd; see XML source

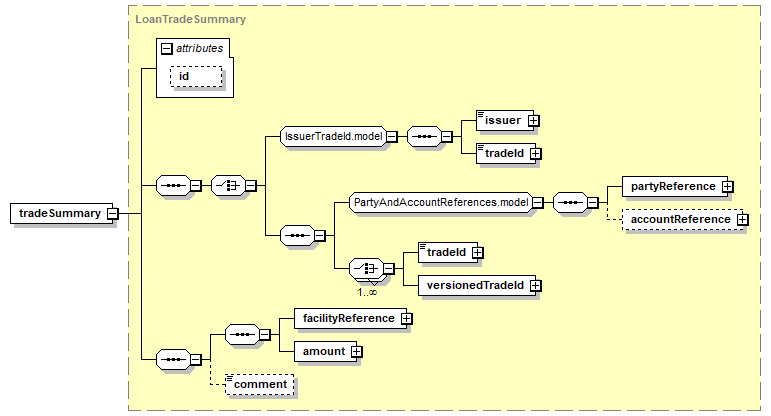

Content Model Diagram
XML Representation Summary
<tradeSummary

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), facilityReference, amount, comment?
</tradeSummary>
Content model elements (11):
accountReference (defined in PartyAndAccountReferences.model group),
amount (defined in LoanTradeSummary complexType),
comment (defined in LoanTradeSummary complexType),
facilityReference (defined in LoanTradeSummary complexType),
issuer (defined in IssuerTradeId.model group),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId (defined in TradeIdentifier complexType),
versionedTradeId (defined in TradeIdentifier complexType)
Included in content model of elements (1):
loanTradeNotification
Annotation
A structure that defines all loan trade information i.e. this structure contains the main (e.g. fund manager/main counterparty) trade details.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="tradeSummary" type="LoanTradeSummary"/>
