element <equityExpirationTime> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
BusinessCenterTime
Content:
complex, 2 elements
Defined:
locally within EquityExpiration.model group in fpml-eqd-5-12.xsd; see XML source

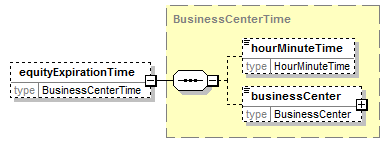

Content Model Diagram
XML Representation Summary
<equityExpirationTime>

Content:
hourMinuteTime?, businessCenter?
</equityExpirationTime>
Content model elements (2):
businessCenter (defined in BusinessCenterTime complexType),
hourMinuteTime (defined in BusinessCenterTime complexType)
Included in content model of elements (3):
equityAmericanExercise, equityBermudaExercise, equityEuropeanExercise
Annotation
The specific time of day at which the equity option expires.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="equityExpirationTime" type="BusinessCenterTime"/>
