element <tradePackage> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradePackage
Content:
complex, 5 elements
Defined:
locally within TradingEventsBase.model group in fpml-business-events-5-13.xsd; see XML source

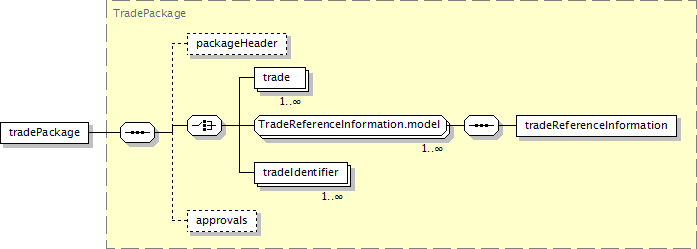

Component Diagram
XML Representation Summary
<tradePackage>

Content:
packageHeader?, (trade+ | tradeReferenceInformation+ | tradeIdentifier+), approvals?
</tradePackage>
Content model elements (5):
approvals (defined in TradePackage complexType),
packageHeader,
trade (defined in TradePackage complexType),
tradeIdentifier (defined in TradePackage complexType),
tradeReferenceInformation
Included in content model of elements (24):
allegedEvent, assertedEvent, clearingConfirmed, clearingEligibility, clearingRefused, confirmationAgreed, confirmationDisputed, consentGranted, consentRefused, executionAdvice, executionAdviceRetracted, executionNotification, executionRetracted, optionExpirationNotification, proposedMatch, requestClearing, requestClearingEligibility, requestClearingRetracted, requestConfirmation, requestConfirmationRetracted, requestConsent, requestConsentRetracted, requestExecution, requestExecutionRetracted
XML Source (see within schema source)
<xsd:element name="tradePackage" type="TradePackage"/>
