element <physicalQuantity> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityNotionalQuantity
Content:
complex, 1 attribute, 3 elements
Defined:
locally within CommodityFixedPhysicalQuantity.model group in fpml-com-5-13.xsd; see XML source

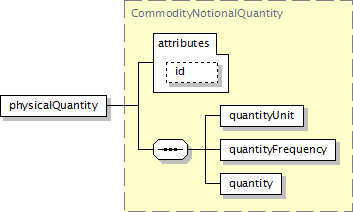

Component Diagram
XML Representation Summary
<physicalQuantity

id
 =
xsd:ID

>

Content:
quantityUnit, quantityFrequency, quantity
</physicalQuantity>
Content model elements (3):
quantity (defined in CommodityNotionalQuantity complexType),
quantityFrequency (defined in CommodityNotionalQuantity complexType),
quantityUnit (defined in CommodityNotionalQuantity complexType)
Included in content model of elements (5):
bullionPhysicalLeg,
deliveryQuantity (in coalPhysicalLeg),
deliveryQuantity (in gasPhysicalLeg),
deliveryQuantity (in oilPhysicalLeg),
metalPhysicalLeg
Annotation
The Quantity per Delivery Period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="physicalQuantity" type="CommodityNotionalQuantity"/>
