element <otcClassification> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	OtcClassification
Content:	simple, 1 attribute
Defined:	locally within TransactionClassification.model group in fpml-doc-5-13.xsd; see XML source

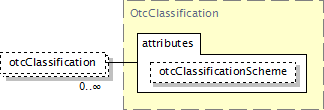

Component Diagram

XML Representation Summary

<otcClassification

otcClassificationScheme

xsd:anyURI : "http://www.fpml.org/coding-scheme/esma-mifir-otc-classification"

Content:

{ xsd:normalizedString }

</otcClassification>

Simple Content Detail:

MaxLength:	255
MinLength:	0

Included in content model of elements (3):

partyInformation,

partyTradeInformation (in tradeHeader),

partyTradeInformation (in tradeReferenceInformation)

Annotation

Classification of the OTC transaction. Note: Coding scheme definition to encapsulate: Articles 20(3)(a) and 21(5)(a) of Regulation (EU) 600/2014. e.g. default="http://www.fpml.org/coding-scheme/esma-mifir-otc-classification"

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="otcClassification" type="OtcClassification"/>
