element <exchangedCurrency1> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Payment
Content:
complex, 2 attributes, 10 elements
Defined:
locally within FxCoreDetails.model group in fpml-fx-5-13.xsd; see XML source

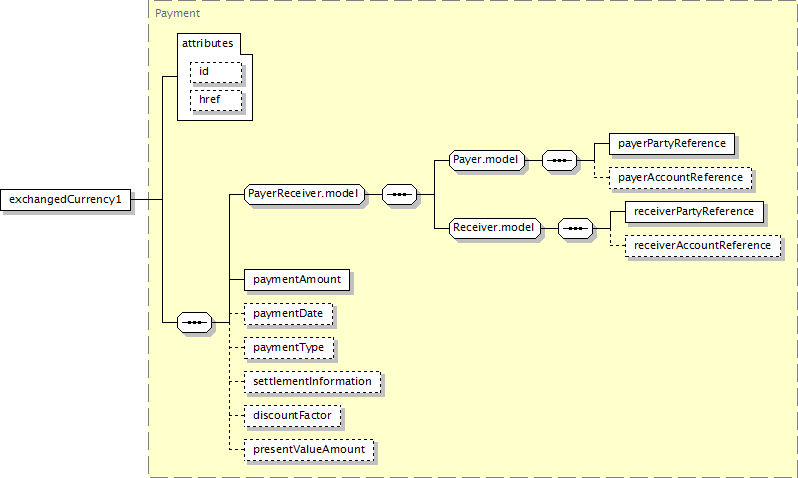

Component Diagram
XML Representation Summary
<exchangedCurrency1

id
 =
xsd:ID
href
 =
xsd:IDREF

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate?, paymentType?, settlementInformation?, discountFactor?, presentValueAmount?
</exchangedCurrency1>
Content model elements (10):
discountFactor (defined in Payment complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
paymentType (defined in Payment complexType),
presentValueAmount (defined in Payment complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
settlementInformation (defined in Payment complexType)
Included in content model of elements (3):
farLeg (in fxSwap),
fxSingleLeg,
nearLeg (in fxSwap)
Annotation
This is the first of the two currency flows that define a single leg of a standard foreign exchange transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangedCurrency1" type="Payment"/>
