element <nonDeliverableSettlement> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxCashSettlement
Content:
complex, 6 elements
Defined:
locally within FxCoreDetails.model group in fpml-fx-5-13.xsd; see XML source

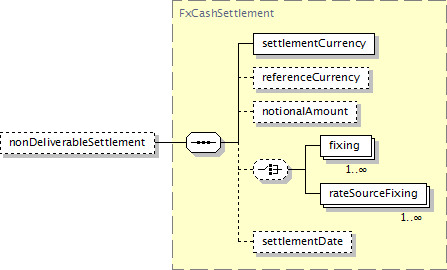

Component Diagram
XML Representation Summary
<nonDeliverableSettlement>

Content:
settlementCurrency, referenceCurrency?, notionalAmount?, (fixing+ | rateSourceFixing+)?, settlementDate?
</nonDeliverableSettlement>
Content model elements (6):
fixing (defined in FxCashSettlement complexType),
notionalAmount (defined in FxCashSettlement complexType),
rateSourceFixing (defined in FxCashSettlement complexType),
referenceCurrency (defined in FxCashSettlement complexType),
settlementCurrency (defined in FxCashSettlement complexType),
settlementDate (defined in FxCashSettlement complexType)
Included in content model of elements (3):
farLeg (in fxSwap),
fxSingleLeg,
nearLeg (in fxSwap)
Annotation
Used to describe a particular type of FX forward transaction that is settled in a single currency (for example, a non-deliverable forward).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="nonDeliverableSettlement" type="FxCashSettlement"/>
