element <expirySchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxExpirySchedule
Content:
complex, 1 attribute, 14 elements
Defined:
locally within FxExpiryDateOrSchedule.model group in fpml-fx-accruals-5-13.xsd; see XML source

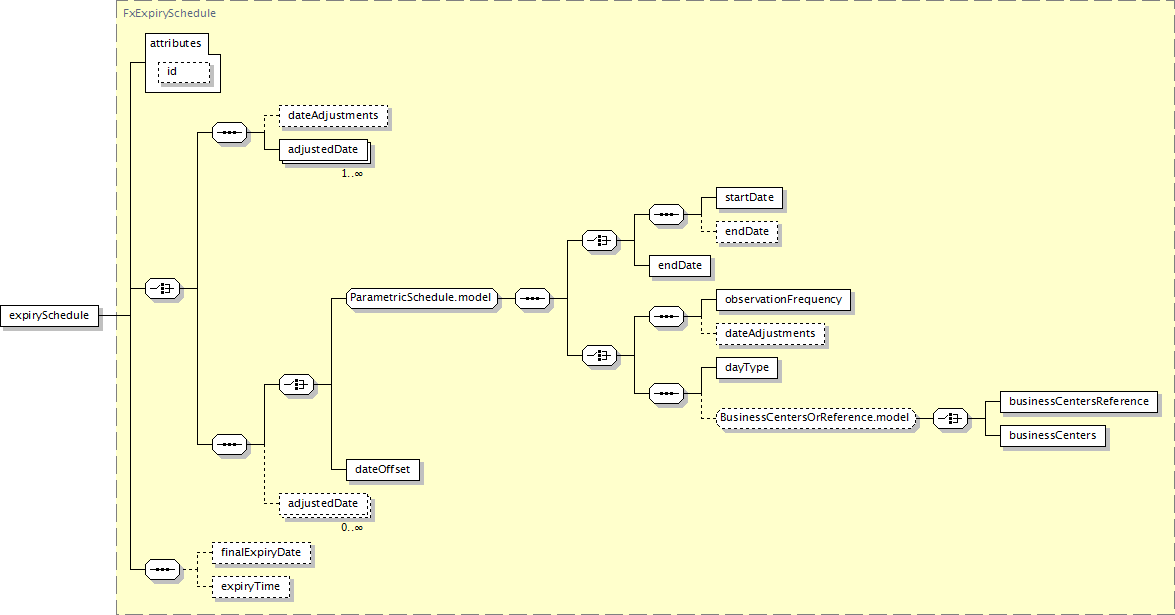

Component Diagram
XML Representation Summary
<expirySchedule

id
 =
xsd:ID

>

Content:
((dateAdjustments?, adjustedDate+) | (((((startDate, endDate?) | endDate), ((observationFrequency, dateAdjustments?) | (dayType, (businessCentersReference | businessCenters)?))) | dateOffset), adjustedDate*)), finalExpiryDate?, expiryTime?
</expirySchedule>
Content model elements (14):
adjustedDate (defined in FxSchedule complexType),
adjustedDate (defined in FxSchedule complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
dateAdjustments (defined in FxSchedule complexType),
dateAdjustments (defined in ParametricSchedule.model group),
dateOffset (defined in FxSchedule complexType),
dayType (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
expiryTime (defined in FxExpirySchedule complexType),
finalExpiryDate (defined in FxExpirySchedule complexType),
observationFrequency,
startDate (defined in ParametricSchedule.model group)
Included in content model of elements (4):
fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxRangeAccrual
Annotation
The parameters for defining a schedule of expiry periods for an accrual forward FX transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expirySchedule" type="FxExpirySchedule"/>
