element <settlementDate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxAdjustedDateAndDateAdjustments
Content:
complex, 2 elements
Defined:
locally within FxSettlementDateOrSchedule.model group in fpml-fx-accruals-5-13.xsd; see XML source

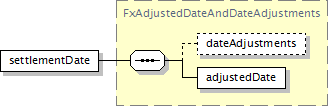

Component Diagram
XML Representation Summary
<settlementDate>

Content:
dateAdjustments?, adjustedDate
</settlementDate>
Content model elements (2):
adjustedDate (defined in FxAdjustedDateAndDateAdjustments complexType),
dateAdjustments (defined in FxAdjustedDateAndDateAdjustments complexType)
Included in content model of elements (4):
fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxRangeAccrual
Annotation
The date on which settlement takes place for a settlement period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="settlementDate" type="FxAdjustedDateAndDateAdjustments"/>
