element <covenant> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanCovenantObligation
Content:
complex, 1 attribute, 15 elements
Defined:
locally within CovenantObligationDetails.model group in fpml-loan-5-13.xsd; see XML source

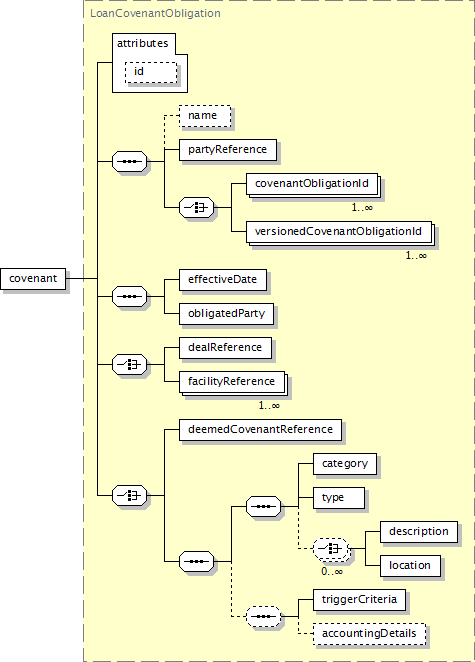

Component Diagram
XML Representation Summary
<covenant

id
 =
xsd:ID

>

Content:
name?, partyReference, (covenantObligationId+ | versionedCovenantObligationId+), effectiveDate, obligatedParty, (dealReference | facilityReference+), (deemedCovenantReference | (category, type, (description | location)*, (triggerCriteria, accountingDetails?)?))
</covenant>
Content model elements (15):
accountingDetails,
category (defined in LoanCovenantObligation complexType),
covenantObligationId (defined in CovenantObligationIdentifier complexType),
dealReference (defined in LoanCovenantObligationSummary complexType),
deemedCovenantReference,
description (defined in LoanCovenantObligation complexType),
effectiveDate (defined in CovenantObligationSummary complexType),
facilityReference (defined in LoanCovenantObligationSummary complexType),
location (defined in LoanCovenantObligation complexType),
name (defined in CovenantObligationIdentifier complexType),
obligatedParty,
partyReference (defined in CovenantObligationIdentifier complexType),
triggerCriteria,
type (defined in LoanCovenantObligation complexType),
versionedCovenantObligationId
Included in content model of elements (2):
dealStatement, loanCovenantObligationNotification
XML Source (see within schema source)
<xsd:element name="covenant" type="LoanCovenantObligation"/>
