element <covenantIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CovenantObligationIdentifier
Content:
complex, 1 attribute, 4 elements
Defined:
locally within CovenantObligationDetails.model group in fpml-loan-5-13.xsd; see XML source

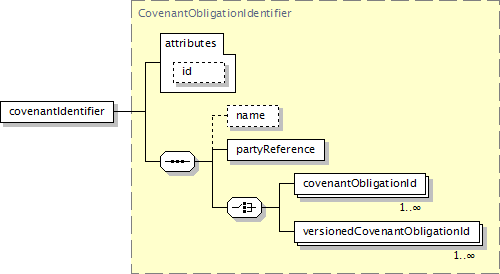

Component Diagram
XML Representation Summary
<covenantIdentifier

id
 =
xsd:ID

>

Content:
name?, partyReference, (covenantObligationId+ | versionedCovenantObligationId+)
</covenantIdentifier>
Content model elements (4):
covenantObligationId (defined in CovenantObligationIdentifier complexType),
name (defined in CovenantObligationIdentifier complexType),
partyReference (defined in CovenantObligationIdentifier complexType),
versionedCovenantObligationId
Included in content model of elements (2):
dealStatement, loanCovenantObligationNotification
Annotation
A deal identifier structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="covenantIdentifier" type="CovenantObligationIdentifier"/>
