element <facilityIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FacilityIdentifier
Content:
complex, 1 attribute, 4 elements
Defined:
locally within FacilityDetails.model group in fpml-loan-5-13.xsd; see XML source

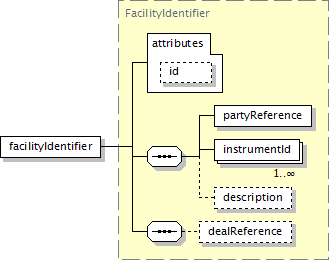

Component Diagram
XML Representation Summary
<facilityIdentifier

id
 =
xsd:ID

>

Content:
partyReference, instrumentId+, description?, dealReference?
</facilityIdentifier>
Content model elements (4):
dealReference (defined in FacilityIdentifier complexType),
description (defined in IdentifiedAssetWithParty complexType),
instrumentId (defined in IdentifiedAssetWithParty complexType),
partyReference (defined in IdentifiedAssetWithParty complexType)
Included in content model of elements (11):
dealStatement, facilityNotification, facilityPositionStatement, lcNotification, loanAllocationNotification, loanBulkServicingNotification, loanContractNotification, loanCovenantObligationNotification, loanLegalActionNotification, loanLegalActionStatement, loanTradeNotification
Annotation
A facility identifier structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="facilityIdentifier" type="FacilityIdentifier"/>
