element <letterOfCreditSummary> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LetterOfCreditSummary
Content:
complex, 1 attribute, 10 elements
Defined:
locally within LetterOfCreditDetails.model group in fpml-loan-5-13.xsd; see XML source

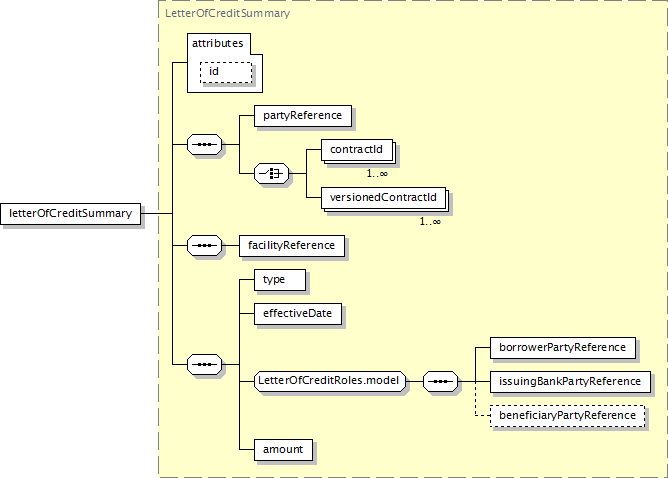

Component Diagram
XML Representation Summary
<letterOfCreditSummary

id
 =
xsd:ID

>

Content:
partyReference, (contractId+ | versionedContractId+), facilityReference, type, effectiveDate, borrowerPartyReference, issuingBankPartyReference, beneficiaryPartyReference?, amount
</letterOfCreditSummary>
Content model elements (10):
amount (defined in LetterOfCreditSummary complexType),
beneficiaryPartyReference (defined in LetterOfCreditRoles.model group),
borrowerPartyReference (defined in LetterOfCreditRoles.model group),
contractId (defined in ContractIdentifier complexType),
effectiveDate (defined in LetterOfCreditSummary complexType),
facilityReference (defined in LoanContractIdentifier complexType),
issuingBankPartyReference,
partyReference (defined in ContractIdentifier complexType),
type (defined in LetterOfCreditSummary complexType),
versionedContractId
Included in content model of elements (6):
facilityNotification, lcNotification, loanAllocationNotification, loanBulkServicingNotification, loanLegalActionNotification, loanLegalActionStatement
Annotation
A letter of credit summary structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="letterOfCreditSummary" type="LetterOfCreditSummary"/>
