complexType "ds:DSAKeyValueType"
Namespace:
http://www.w3.org/2000/09/xmldsig#
Content:
complex, 7 elements
Defined:
globally in xmldsig-core-schema.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 1 location

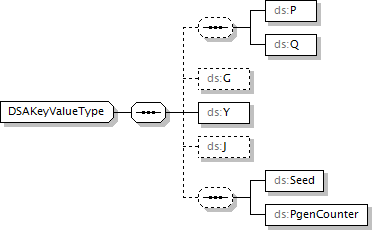

Component Diagram
XML Representation Summary
<...>

Content:
(ds:P, ds:Q)?, ds:G?, ds:Y, ds:J?, (ds:Seed, ds:PgenCounter)?
</...>
Content Model Elements (7):
ds:G, ds:J, ds:P, ds:PgenCounter, ds:Q, ds:Seed, ds:Y
All Direct / Indirect Based Elements (1):
ds:DSAKeyValue
Known Usage Locations
XML Source (see within schema source)
<complexType name="DSAKeyValueType">
<sequence>
<sequence minOccurs="0">
<element name="P" type="ds:CryptoBinary"/>
<element name="Q" type="ds:CryptoBinary"/>
</sequence>
<element minOccurs="0" name="G" type="ds:CryptoBinary"/>
<element name="Y" type="ds:CryptoBinary"/>
<element minOccurs="0" name="J" type="ds:CryptoBinary"/>
<sequence minOccurs="0">
<element name="Seed" type="ds:CryptoBinary"/>
<element name="PgenCounter" type="ds:CryptoBinary"/>
</sequence>
</sequence>
</complexType>
Content Element Detail (all declarations; defined within this component only; 7/7)
ds:G
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element minOccurs="0" name="G" type="ds:CryptoBinary"/>
ds:J
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element minOccurs="0" name="J" type="ds:CryptoBinary"/>
ds:P
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element name="P" type="ds:CryptoBinary"/>
ds:PgenCounter
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element name="PgenCounter" type="ds:CryptoBinary"/>
ds:Q
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element name="Q" type="ds:CryptoBinary"/>
ds:Seed
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element name="Seed" type="ds:CryptoBinary"/>
ds:Y
Type:
ds:CryptoBinary, simple content
Simple Content
base64Binary
XML Source (see within schema source)
<element name="Y" type="ds:CryptoBinary"/>
