element <currency> (local)

Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	Currency
Content:	simple, 1 attribute
Defined:	locally witnin QuotationCharacteristics.model group in fpml-asset-5-3.xsd; see XML source

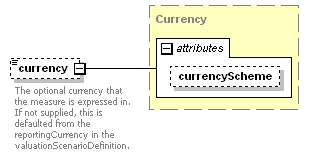

Content Model Diagram

XML Representation Summary

<currency

currencyScheme

xsd:anyURI : "http://www.fpml.org/ext/iso4217-2001-08-15"

Content:

{ xsd:normalizedString }

</currency>

Simple Content Detail:

MaxLength:

255

Included in content model of elements (18):

dataPoints,

observedValue,

point (in dataPoints),

priceNotation,

quotationCharacteristics (defined in Price complexType),

quotationCharacteristics (in eventActivityReport),

quotationCharacteristics (in exposureReport),

quotationCharacteristics (in positionActivityReport),

quotationCharacteristics (in positionReport),

quotationCharacteristics (in valuationSet),

quote (defined in AssetValuation complexType),

quote (defined in EventValuation.model group),

quote (defined in NonSchemaProduct complexType),

quote (defined in ReportedExposure complexType),

quote (in assetQuote),

quote (in pricing),

quote (in standardProduct),

sensitivityCharacteristics

Annotation

The optional currency that the measure is expressed in. If not supplied, this is defaulted from the reportingCurrency in the valuationScenarioDefinition.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="currency" type="Currency"/>
