element <valuation> (local)
Namespace:
Type:
Content:
complex, 2 attributes, 4 elements
Defined:

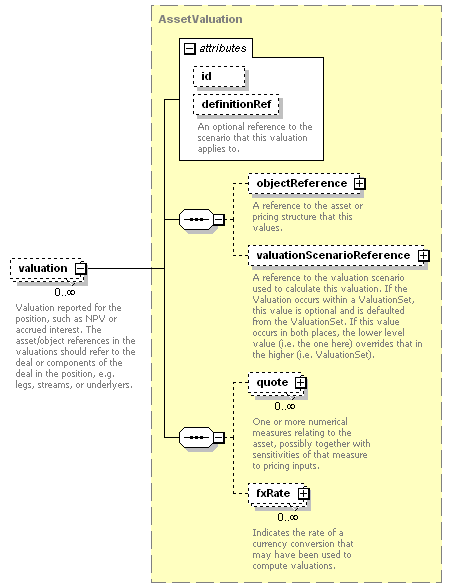

Content Model Diagram
XML Representation Summary
<valuation

 =
xsd:ID
 =
xsd:IDREF
    >

Content:
objectReference?, valuationScenarioReference?, quote*, fxRate*
</valuation>
Content model elements (4):
fxRate (defined in AssetValuation complexType),
objectReference,
quote (defined in AssetValuation complexType),
valuationScenarioReference (defined in Valuation complexType)
Included in content model of elements (3):
allegedPosition, proposedMatch (in positionMatchResult)
Annotation
Valuation reported for the position, such as NPV or accrued interest. The asset/object references in the valuations should refer to the deal or components of the deal in the position, e.g. legs, streams, or underlyers.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="valuation" type="AssetValuation"/>
