element <calculationPeriodsSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityCalculationPeriodsSchedule
Content:
complex, 1 attribute, 3 elements
Defined:
locally witnin CommodityAsian.model group in fpml-com-5-3.xsd; see XML source

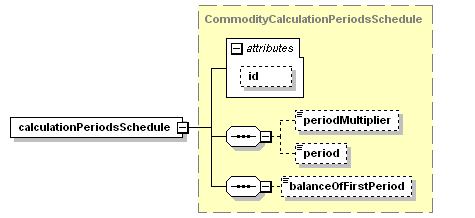

Content Model Diagram
XML Representation Summary
<calculationPeriodsSchedule

id
 =
 xsd:ID
    >

Content:
 periodMultiplier?, period?, balanceOfFirstPeriod?
</calculationPeriodsSchedule>
Content model elements (3):
balanceOfFirstPeriod,
period (defined in Frequency complexType),
 periodMultiplier (defined in Frequency complexType)
Included in content model of elements (1):
commodityOption
Annotation
A parametric representation of the Calculation Periods of the Commodity Option Transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule"/>
