element <fixedPriceSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityFixedPriceSchedule
Content:
complex, 7 elements
Defined:
locally witnin CommodityFixedPrice.model group in fpml-com-5-3.xsd; see XML source

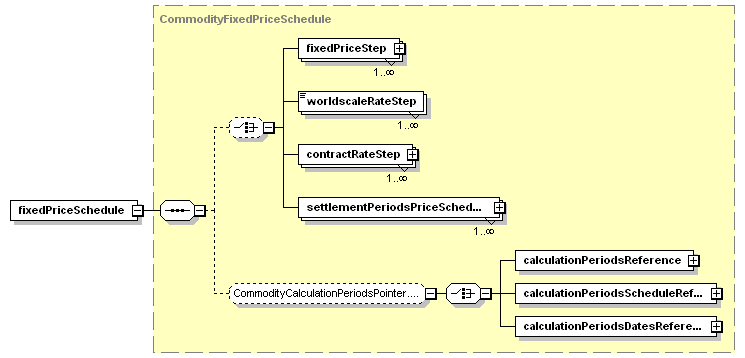

Content Model Diagram
XML Representation Summary
<fixedPriceSchedule>

Content:
 (fixedPriceStep+ | worldscaleRateStep+ | contractRateStep+ | settlementPeriodsPriceSchedule+)?, (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference)?
</fixedPriceSchedule>
Content model elements (7):
calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference, contractRateStep, fixedPriceStep, settlementPeriodsPriceSchedule, worldscaleRateStep
Included in content model of elements (1):
fixedLeg
Annotation
Allows the specification of a Fixed Price that varies over the life of the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedPriceSchedule" type="CommodityFixedPriceSchedule"/>
