element <associatedValue> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
AssetValuation
Content:
complex, 2 attributes, 4 elements
Defined:
locally witnin AssociatedValue.model group in fpml-valuation-5-3.xsd; see XML source

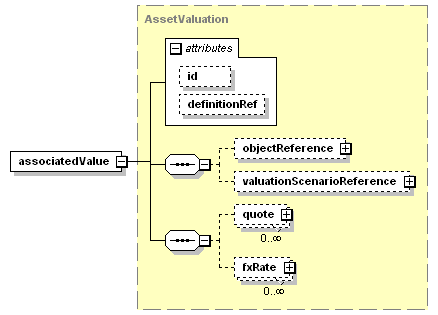

Content Model Diagram
XML Representation Summary
<associatedValue

id
 =
 xsd:ID
definitionRef
 =
 xsd:IDREF
    >

Content:
 objectReference?, valuationScenarioReference?, quote*, fxRate*
</associatedValue>
Content model elements (4):
fxRate (defined in AssetValuation complexType),
objectReference,
quote (defined in AssetValuation complexType),
valuationScenarioReference (defined in Valuation complexType)
Included in content model of elements (3):
scheduledDate (defined in Position complexType), scheduledDate (defined in ScheduledDates complexType)
Annotation
The value that is associated with the scheduled date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="associatedValue" type="AssetValuation"/>
