element <payment> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
Payment
Content:
complex, 2 attributes, 3 elements
Defined:
locally witnin TradeAlterationPayment.model group in fpml-business-events-5-5.xsd; see XML source

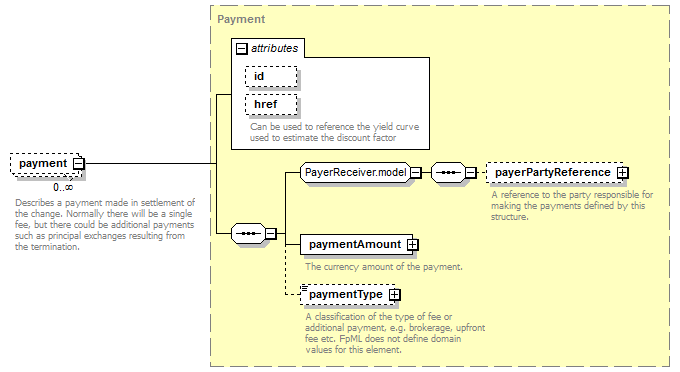

Content Model Diagram
XML Representation Summary
<payment

id
 =
 xsd:ID
href
 =
 xsd:IDREF
    >

Content:
 payerPartyReference?, paymentAmount, paymentType?
</payment>
Content model elements (3):
payerPartyReference (defined in PayerReceiver.model group),
paymentAmount (defined in Payment complexType),
 paymentType (defined in Payment complexType)
Included in content model of elements (3):
amendment, increase, termination
Annotation
Describes a payment made in settlement of the change. Normally there will be a single fee, but there could be additional payments such as principal exchanges resulting from the termination.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="payment" type="Payment"/>
